When you hit the play button in DeepZoom, or alternatively when you drag the time slider, events associated with the trip are triggered.

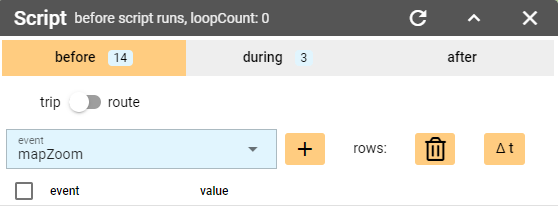

Events are associated with one of three groups, corresponding to the before, during, and after tabs in the script dialog.
Events are attached to either a trip or to a route, depending on the trip / route toggle.
event type
before
during
after
trip
once
during trip
end of trip
route
start of route
during route
end of route
Trip Events
Before trip events affect the starting conditions for the trip, and are a good place to put layer selection, opacities, playback rate, and timebase settings. When you save a trip with "Include view settings" set to Yes, all of these settings are saved for you automatically.
During trip events are triggered when a specified portion of the trip is complete. This is a relative measurement (0-1).
In general, it's better to use route during events instead of trip during events since these relative offsets are less likely to be affected by changes in the overall trip containing multiple routes.
After trip events are triggered each time the trip animation completes. Finally, the loopcount variable is incremented, which can be used change properties on even/odd or every nth pass through the trip.
Route Events
Before route events affect the starting conditions for the route.
During route events are triggered when a specified portion of the route is complete. This is a relative measurement (0-1).
In general, it's better to use route during events instead of trip during events since these relative offsets are less likely to be affected by changes in the overall trip containing multiple routes.
After route events are triggered each time the route is completed.
Relative events

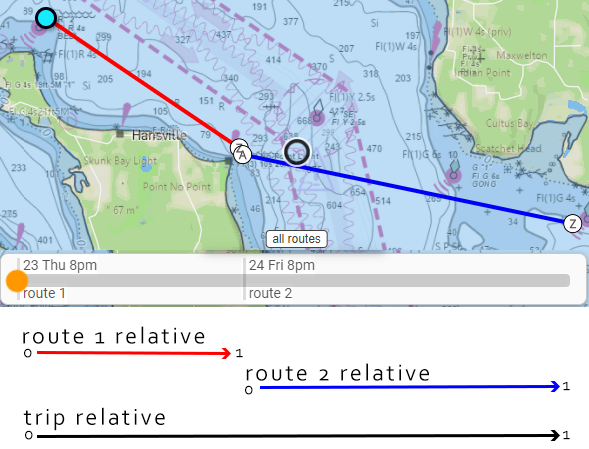

The during event are a linear measurement of relative progress through either a trip or route, expressed as a value of 0 to 1.
Note that the "Δt" button in the script dialog let's you re-assign the relative position for all selected events after dragging the slider.
Adding Events
Follow this sequence when adding events:
Stop animation.
Select either trip or route using the toggle. If route, select the name of the route.
Select the appropriate tab, either "before", "during", or "after".
Move the time slider to the time when you want the event to activate.
If appropriate, perform the action you want to record in DeepZoom. Like select a current station, or select a marker, or choose a tab.
From the event list, select the corresponding event to record and then press "+".
If necessary, edit the event. For example if using the notify event, fill in the text to display.
Test triggering the event by dragging the time slider back and forth.
if conditional and loopcount
Any event can include a conditional if clause. For example, to trigger an event only on even or odd passes, add the following "if" property to any event
"if": "loopCount % 2 == 0"// all even loops or "if": "loopCount % 2 == 1"// all odd loops
the info stack
Multiple web pages or media can be added to the info page arranged in a stack. See the info infoUrl event for inspiration.
What can be scripted?
DeepZoom allows you to add events to a trip and or route and trigger them at specific times. Events fall into five main categories.
example, displaying marinas at the end of each route:
https://www.deepzoom.com/trip/yzp5ybrk
before, during, and after
When you hit the play button in DeepZoom, or alternatively when you drag the time slider, events associated with the trip are triggered.
Events are associated with one of three groups, corresponding to the before, during, and after tabs in the script dialog.
Events are attached to either a trip or to a route, depending on the trip / route toggle.
Trip Events
Before trip events affect the starting conditions for the trip, and are a good place to put layer selection, opacities, playback rate, and timebase settings. When you save a trip with "Include view settings" set to Yes, all of these settings are saved for you automatically.
During trip events are triggered when a specified portion of the trip is complete. This is a relative measurement (0-1). In general, it's better to use route during events instead of trip during events since these relative offsets are less likely to be affected by changes in the overall trip containing multiple routes.
After trip events are triggered each time the trip animation completes. Finally, the
loopcountvariable is incremented, which can be used change properties on even/odd or every nth pass through the trip.Route Events
Before route events affect the starting conditions for the route.
During route events are triggered when a specified portion of the route is complete. This is a relative measurement (0-1). In general, it's better to use route during events instead of trip during events since these relative offsets are less likely to be affected by changes in the overall trip containing multiple routes.
After route events are triggered each time the route is completed.
Relative events
The during event are a linear measurement of relative progress through either a trip or route, expressed as a value of 0 to 1.
Note that the "Δt" button in the script dialog let's you re-assign the relative position for all selected events after dragging the slider.
Adding Events
Follow this sequence when adding events:
if conditional and loopcount
Any event can include a conditional if clause. For example, to trigger an event only on even or odd passes, add the following "if" property to any event
the info stack
Multiple web pages or media can be added to the info page arranged in a stack. See the info infoUrl event for inspiration.
